Description

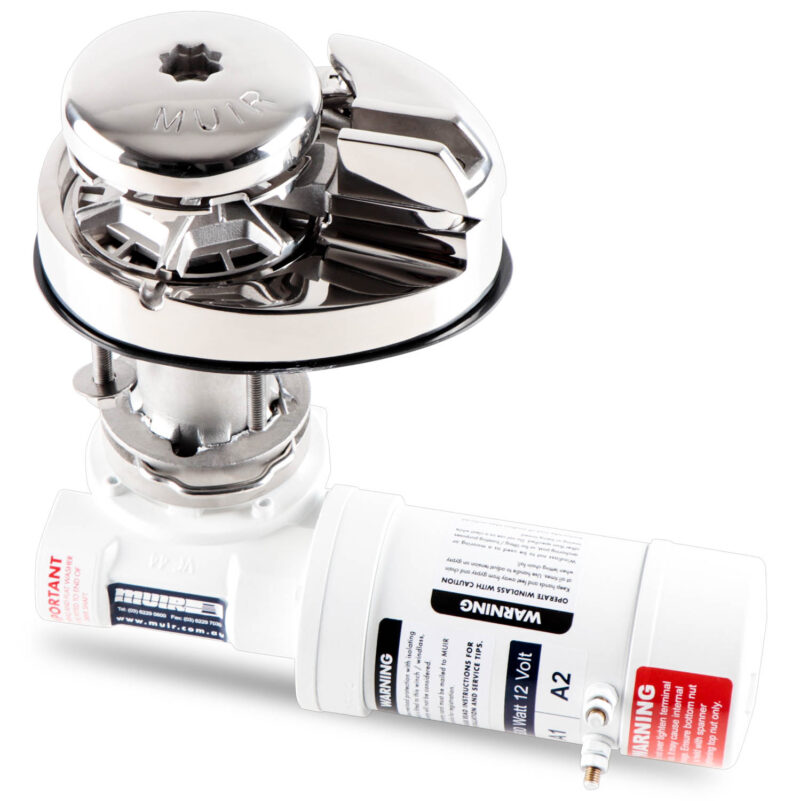

MUIR STORM FREEFALL VR600 KIT 12V OR 24V 600W 6MM CHAIN
Please nominate voltage and chain size required when requesting a quote
Package includes all rocker switch, solenoid, circuit breaker, mounting hardware, clutch handle and instruction booklet
Features:
Polished stainless steel components
High tensile stainless steel shaft
Heavy duty, marine grade, dual-direction motor
Superior, heavy-duty Oil bath worm drive gearbox
Rope Chain Management System (RCMS) fitted
Integrated quick release with chain pipe cover
Self-lubricating bush
Capstan models feature a knurled grip
Independent gypsy and capstan operation
Suits multiple global chain standards
Technical Specifications:
Recommended Vessel Length 5-9m
Power Supply Options DC 12V, DC 24V
Recommended Muir Circuit Breaker
80A/80A (12/24V)
Motor (Watts) 550Watts
Amps Workload 75A/40A (12/24V)
Max Load 369Kg
Workload 123Kg
Max Line Speed 21m/min
Compatible Chain Sizes 6 mm (1/4 inch), 7 mm (0.27559 inch)
Compatible Rope Sizes
12mm (1/2?)
Auto Anchor Compatible Yes
Net Weight DC 12Kg
Manual Operation N/A
More info here (including drawings):
