Description
FEATURES
The control panel is connected to the control box by one serial cable (CANBUS cable) with two 8-pole plugs.
Each wiper can be operated separately.
Fits W12, W25, and W38.
Three intermittent speeds.
One or two continuous speeds.
Synchronized sweeps at any mode.
Motor brake.
Washing program.
An additive control panel can be added to work from different stations.

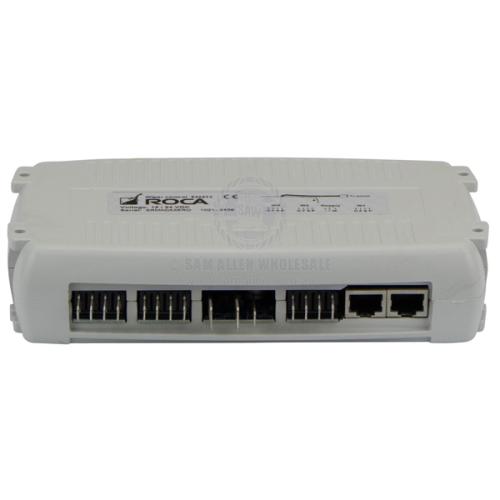

The system is composed of one control panel* and one control box which are sold separately.
SPECIFICATIONS
Part No. 39832
Volts 12V/24V
Dimensions (W x H x D) 192mm x 40mm x 108mm
Fits Up to 3 Motors
Cut Out (W x H) –
Note *You can also choose a switch instead of a panel.
