UHF PL-259 Screw and Solder Plug for LL-LMR195 and RG58 50 Ohm Cable

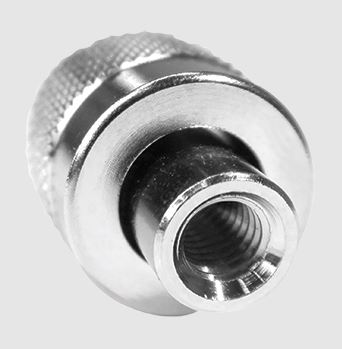

The U058S UHF PL-259 plug is a combination screw and solder style connector. It is a quality Nickel plated product with a Gold finish on the centre pin contact and soldering surface (inside the centre pin). Unlike Silver-plated connectors, it has a high resistance to tarnishing.
UHF PL-259 connector for use with 56MM-E58, E58LL and E195 series cable
Impedance: 50O nom
The shield screw thread connection conforms to the proper UHF PL-259 standard imperial thread
Brass body with nickel plating and gold plated centre pin
Suitable up to 520MHz
Simple, easy to use and install
