Description
FEATURES
Pulls easily over bow roller.
Removable pins with allen key head.
316G stainless steel.
Stamped with rated load.

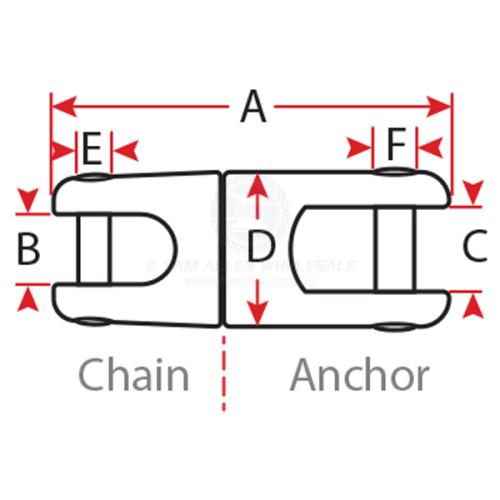

SPECIFICATIONS
Part No. 110330
Length (A) 84mm
Width (D) 28mm
Suits Chain Size 6mm-8mm
Chain End (B) 9mm
Anchor End (C) 16mm
Pin Diameter Short (E) / Long (F) 7.5mm / 10mm
Safe Working Load 625kg
Note: Use with Loctite thread adhesive.
