Description
KOVA-TMDH-4040-0 (KOVA2400)

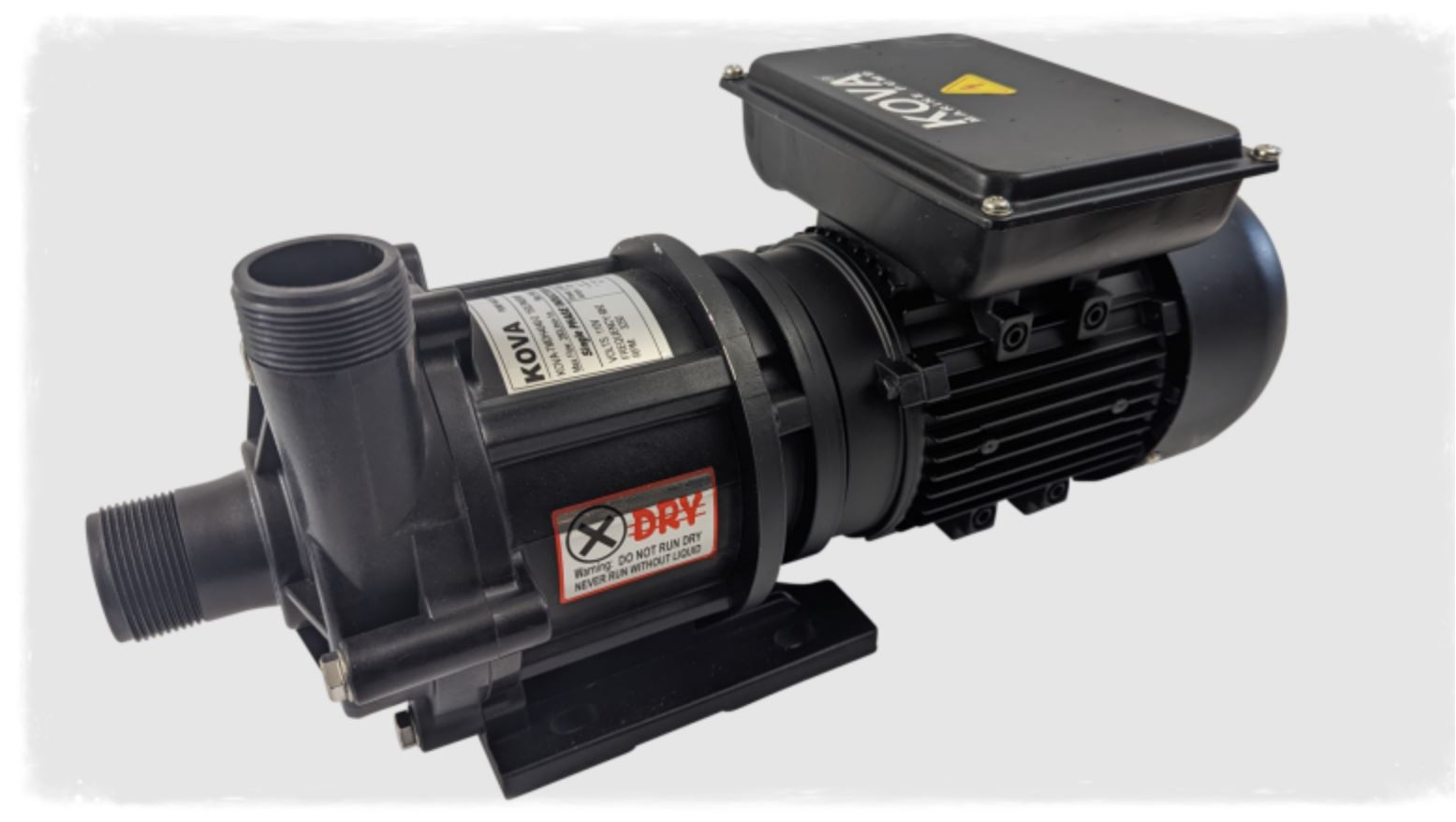

KOVA-TMDH-4040-0 (KOVA2400) Single Phase induction motor centrifugal fan cooled magnetic drive pump. Available in 380/440-3Ph,
220/240-50/60Hz and 110/60Hz. Max flow rate 276-Lpm at 0.5mtr-head – Min flow rate at 10.1-Lpm at 9.9-mtr head. Output 0.37KW / 0.5HP
Standard working point flow rate 2377GPH/150LPM BSP Fittings: 40mm (1.5″) Inlet / 40mm (1.5″) Outlet. 110mm wide 430mm long 216mm high (without fittings)
Capacitors for 220/240V 50/60Hz: (Start) CD60 100uf 450V – (Running) CBB60 20uf 300V
Capacitors for 110V 60Hz: (Start) CD60 200uf 450V – (Running) CBB60 45uf 300V
Pump Body: Aluminium TEFC (Totally Enclosed Fan-Cooled) This means that Air is forced automatically over the Pump body by a connected fan at the back of the pump, pushing air forward over the pump body that increases the heat exchange (keeping the pump cool) .
Pump Head: GFRPP (Glass Reinforced Polypropylene with 30% reinforced Fibre) Very strong, and corrosion free, this includes the Impeller.
The shaft is made from “Alumina Ceramic” as well as the shaft seat. Built for longevity and reliability.
