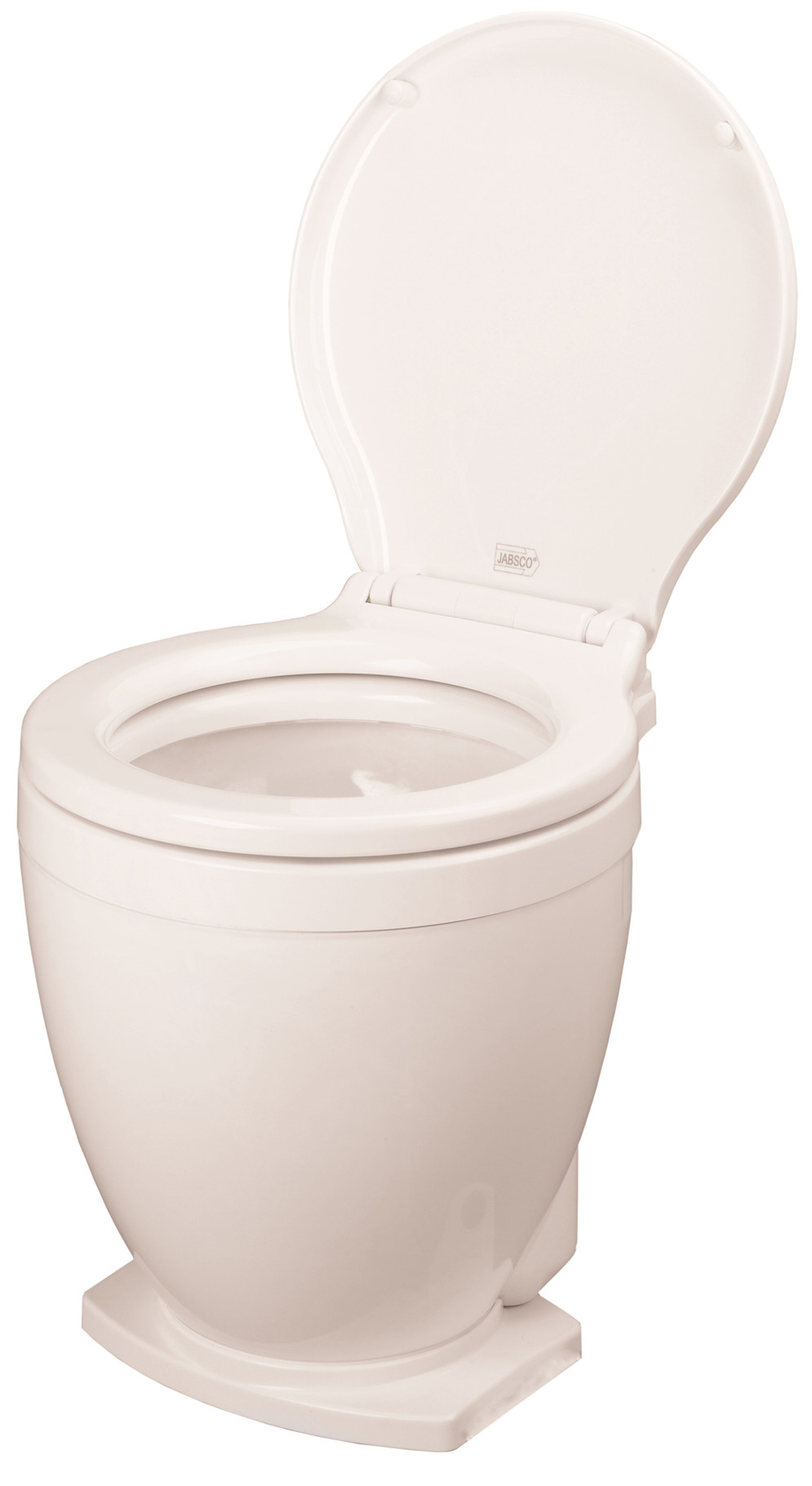

Lightweight space-saving contempory design electric toilet to give your bathroom a modern stylish look. This toilet is lighter duty than the “Deluxe Silent Flush” models on previous page and is for use on recreational craft only – not for use on commercial craft and hire boats Etc. The toilet has a high quality plastic outer casing with a ceramic inner bowl. The innovative design offers low power usage and low water consumption to maximise holding tank capacity. They have an extremely quiet, virtually silent, integral raw water rinse pump and a non-clogging, macerating, waste pump system housed wholly within the toilet, to save space on board. The lite-flush has the same mounting footprint, fixing points and hose attachment as the Jabsco manual toilet for ease of installation and retro-fit.
2 models are available –
Base Footswich Model – left or right fitting. Uses an integral footswitch to control the operation of the toilet
Control Panel Model – uses a wall mounted multi-function one touch control pad for fill or flush
Some of the features of the Lite-Flush toilet are –
Lightweight (11 Kg) and compact, space-saving stylish design
Efficient Jabsco technology gives virtually SILENT operation
Efficient, very quiet, Jabsco electric diaphragm water intake pump
Non-clogging large bore centrifugal flush pump macerates waste
Can use as little as 1.2 litres of water per flush
Crevice-free contours for hygiene and easier cleaning
Slow-close seat and lid won’t bang shut
Anti-odour water lock in pump housing
Low power consumption – less than 1 amp/hour per day
Easy retro-fit if replacing a Jabsco manual toilet
Toilet discharges up to 1.5 metres above the base of the toilet
Water intake pump self primes up to 2.4 metres
Easy access to flush and rinse pumps for servicing
3/4″ 19mm water inlet – 1 1/2″ 38mm discharge outlet
Compact size : 373mm height, 402mm depth, 342mm / 401mm width
Lite-Flush Toilet With Wall Mount Control Panel
Includes complete Lite-flush electric toilet with a wall mounted control panel with 3 metre link cable, fitted quick connector and heat shrink seal. The control panel has easy one-touch setting.
