Description

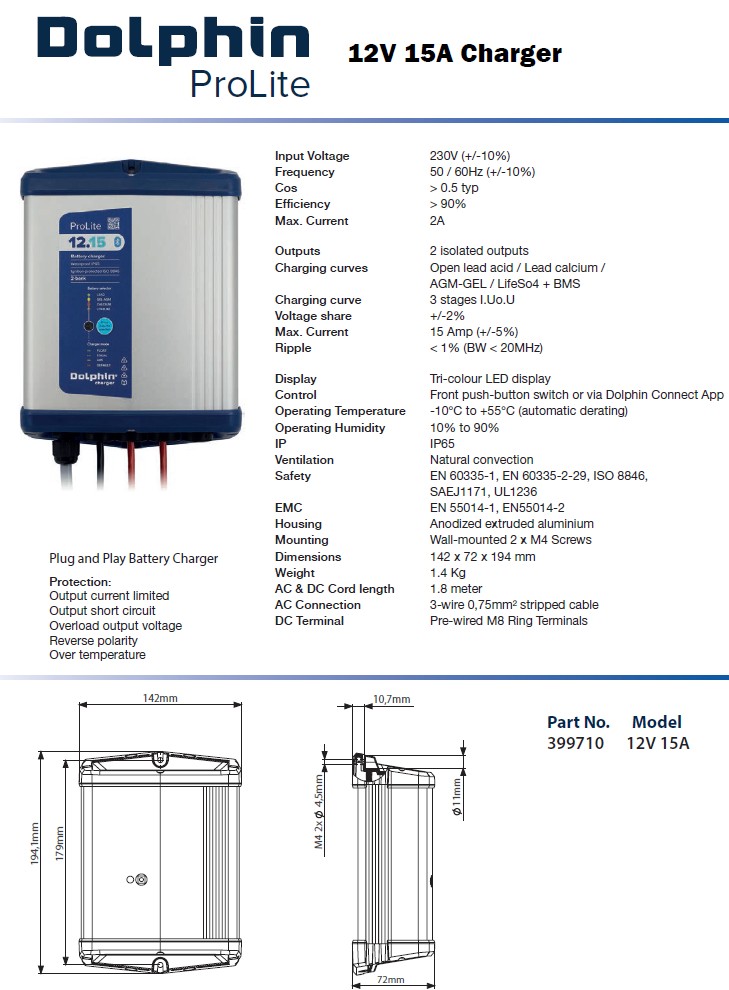

DOLPHIN PRO LITE 12V 15A IP65 2 OUT
The best charger for sailboats, center console boats, sport fishing boats and other outboard engine pleasure craft
Power range : from 15A to 25A
IP65 water-resistant
Protected against ignition of flammable gases (ISO 8846 certified by US Laboratory IMANNA) for use in combination with outboard gasoline engines
Totally dust-tight
40% smaller and 50% lighter than most competitors
100% silent : PROLITE is a fan-less charger which makes it perfectly silent and therefore perfect for mounting anywhere into small (living) spaces
Smart : PROLITE chargers come with the brand-new Dolphin Connect App (iOS and Android) and with Bluetooth interface as standard equipment
Super-efficient : 92% of the power which comes in is converted and comes out (without heat) through 2 outputs (15A version) or 3 outputs (25A)
PROLITE works with any battery technology on the market including Lithium Ion
2-year-warranty
SPECIFICATIONS:
Input
Input Voltage 230V (+/-10%)
Frequency 50 / 60Hz (+/-10%)
Cos > 0.5 typ
Efficiency > 90%
Max. Current 2A
Output
Number of outputs 2 isolated outputs
Number of charging curves Open lead acid / Lead calcium / AGM-GEL / LifeSo4 + BMS
Charging curve 3 stages I.Uo.U
Voltage share +/-2%
Max. Current 15 Amp (+/-5%)
Ripple < 1% (BW < 20MHz)
Physical
Display Tri-colour LED display
Control Front push-button switch or via Dolphin Connect App
Operating Temp -10°C to +55°C (automatic derating)
Storage Temp -20°C to +70°C
Humidity 10% to 90%
IP IP65
Ventilation Natural convection
Safety EN 60335-1, EN 60335-2-29, ISO 8846, SAEJ1171, UL1236
EMC EN 55014-1, EN55014-2
Housing Anodized extruded aluminium
Mounting Wall-mounted 2 x M4 Screws
Dimensions 142 x 72 x 194 mm
Weight 1.4 Kg
AC & DC Cord length 1.8 meter
AC Connection 3-wire 0,75mm² stripped cable
DC Terminal Pre-wired M8 Ring Terminals
Protection
Output current limited
Output short circuit
Overload output voltage
Reverse polarity
Over temperature
