DOLPHIN III BATTERY CHARGER 24V 30A 3 OUTPUT
New robust and compact casing
3 completely isolated battery outputs
Easy wiring and connection thanks to the Winsta (Wago) and Phoenix contact connectors
Digital management with up to date micro-controller
4 charging programs including one for lithium-ion-iron-phosphate with integrated BMS
Full power at temperatures up to 50°C
Automatic weekly equalisation for all charging programs
Automatic 115/230v switch over (12v 25A, 12v 40A & 24v 20A only)
Night mode: silent without fan (12v 25A, 12v 40A & 24v 20A only)
Conformal coating of the PCB to prolong the life of the battery charger
New Dolphin Premium 24v 30A includes CAN BUS J1939 feature

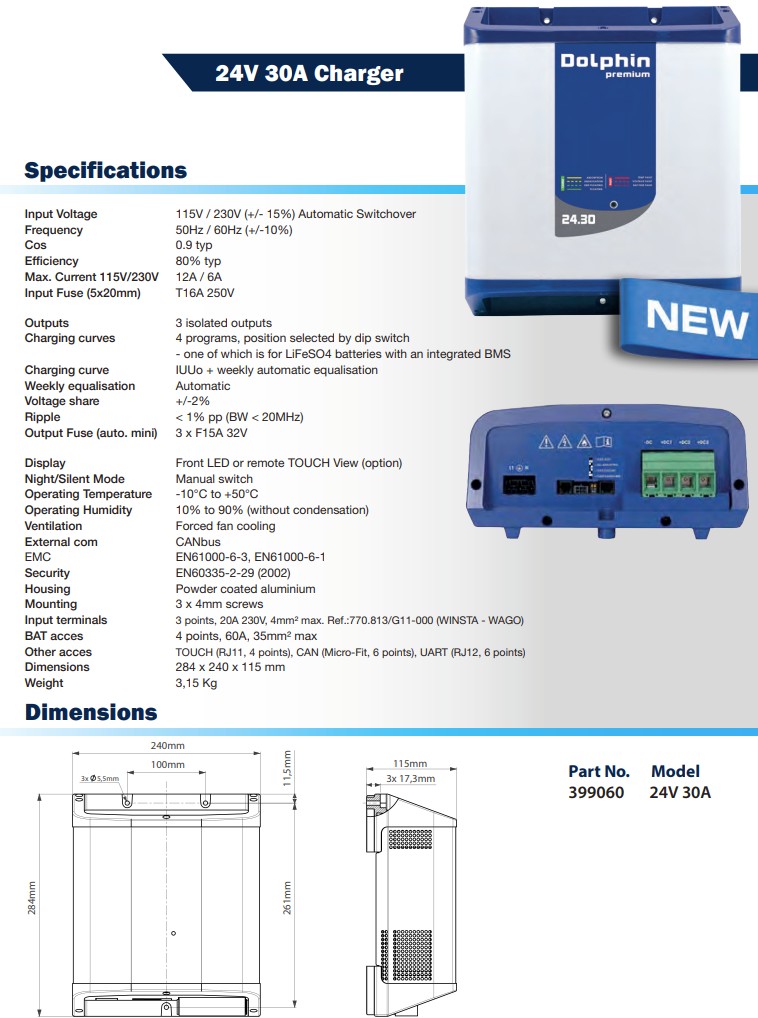

SPECIFICATIONS:
Input
Input Voltage 115V / 230V (+/- 15%) Automatic Switchover
Frequency 50Hz/60Hz (+/-10%)
Cos phi 0,9 typ
Efficiency 80% typ
Max. Current 115/230V 12A / 6A
Fuse (5x20mm) T16A 250V
Output
Number of outputs 3 isolated outputs
Number of charging curves 4 programs, position selected by dip switch – one of which is LiFeSO4 with integrated BMS
Charging curve IUUo + weekly automatic equalisation
Weekly equalisation Automatic
Voltage precision +/-2%
Ripple < 1% pp (BW < 20MHz)
Max Current 30A
Fuse (Automotive) 3X F15A 32V
Physical
Display Front LED or remote TOUCH View (option)
Night/Silent Mode Manual switch
Operating Temp -10°C to +50°C
Humidity 10% to 90% (without condensation)
Ventilation Forced fan cooling
External com CANbus
EMC EN61000-6-3, EN61000-6-1
Security EN60335-2-29 (2002)
Housing Powder coated aluminium
Mounting 3 x 4mm screws
Dimensions 284 x 240 x 115 mm
Weight 3,15 Kg
Input terminals 3 points, 20A 230V, 4mm² max. Ref. : 770.813/G11-000 (WINSTA - WAGO)
BAT acces 4 points, 60A, 35mm² max
TOUCH acces RJ11, 4 points
CAN acces Micro-Fit, 6 points
UART acces RJ12, 6 points
Protection
1 Output overload
2 Output short circuit
3 Excessive internal temperature
4 Excessive battery temperature
5 Output overvoltage
6 Reverse battery polarity (fuse)
