DOLPHIN III BATTERY CHARGER 12V 60A 3 OUTPUT
New robust and compact casing
3 completely isolated battery outputs
Easy wiring and connection thanks to the Winsta (Wago) and Phoenix contact connectors
Digital management with up to date micro-controller
4 charging programs including one for lithium-ion-iron-phosphate with integrated BMS
Full power at temperatures up to 50°C
Automatic weekly equalisation for all charging programs
Automatic 115/230v switch over (12v 25A, 12v 40A & 24v 20A only)
Night mode: silent without fan (12v 25A, 12v 40A & 24v 20A only)
Conformal coating of the PCB to prolong the life of the battery charger
New Dolphin Premium 12v 60A includes CAN BUS J1939 feature

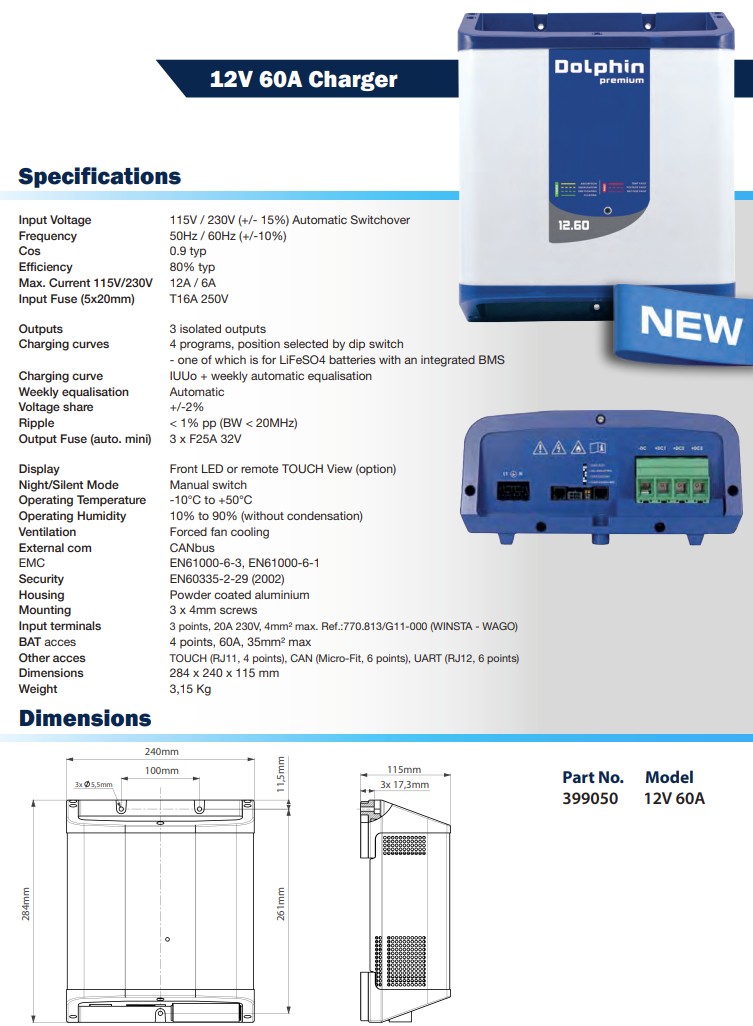

SPECIFICATIONS:
Input
Input Voltage 115V / 230V (+/- 15%) Automatic Switchover
Frequency 50Hz / 60Hz (+/-10%)
Cos 0,9 typ
Efficiency 80% typ
Max. Current 115V/230V 7A / 3,5A
Fuse (5x20mm) T10A 250V
Output
Number of outputs 3 isolated outputs
Number of charging curves 4 programs, position selected by dip switch NEW – one of which is LiFeSO4 with integrated BMS
Charging curve IUUo + weekly automatic equalisation
Weekly equalisation Automatic
Voltage share +/-2%
Ripple < 1% pp (BW < 20MHz)
Fuse (automatic mini) 2 x F25A 32V
Physical
Display Tricolour LED
Night/Silent Mode Manual switch
Operating Temp -10°C to +50°C
Humidity 10% to 90% (without condensation)
Ventilation Forced fan cooling
Security EN60335-2-29 (2002)
Housing Powder coated aluminium
Mounting 2 screws 4mm
Dimensions 96 x 120 x 353 mm
Weight 2,25 Kg
Input terminals 20A 230V, 4mm² max WINSTA – WAGO 770.813 / G11-000
Battery terminal 40A 630V, 10mm² max PHOENIX CONTACT PC6-16/4-G1F,16
CAN BUS No
Protection
1 Output overload
2 Excessive internal temperature
3 Charging voltage too high
4 Reverse battery polarity (fuse)
