Description

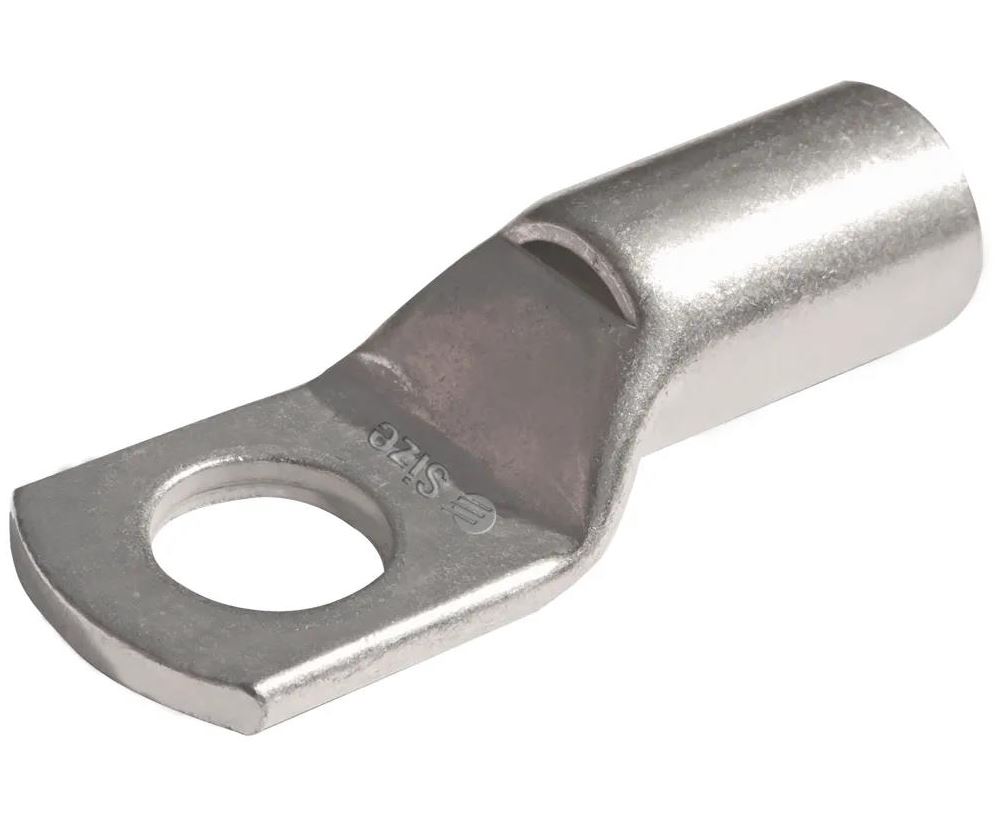

COPPER LUG 25MM X 8MM B/M 4 PACK
Specifications
Nominal Conductor (mm2): 25
Stranding No./Dia.: 19/1.35
ID Size (mm): 7.1
Stud (mm): 8
Technical Information
Conductive Material
Copper 99.95% pure
Oxygen content 30 p.p.m Max.
Tensile strength 200 MPa
Ductile rating 40%
Final metal state fully annealed
Electroplating Material
Tin 99.9% pure
Other metals lead + antimony
Thickness 5 -10 microns
Dimensional Specification
Tooling is interchangeable between CABAC, Utilux and Burndy
General Electrical Properties
Total conductivity 99.7% IACS
Total resistivity: 1.738 micro-ohm cm
