Description

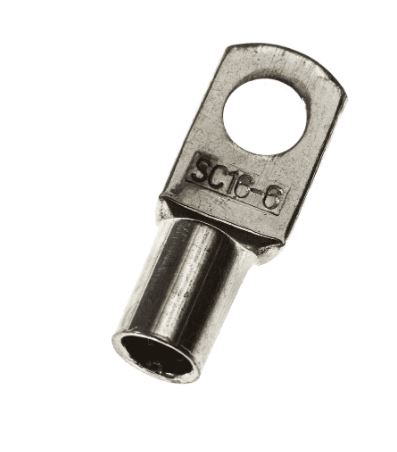

COPPER LUG 16MM X 6MM B/M 4 PACK
Nominal Conductor (mm2): 16
ID Size (mm): 5.5
Stud (mm): 6
Qty Per Box: 4
Conductive Material
Copper 99.95% pure
Oxygen content 30 p.p.m Max.
Tensile strength 200 MPa
Ductile rating 40%
Final metal state fully annealed
Electroplating Material
Tin 99.9% pure
Other metals lead + antimony
Thickness 5 -10 microns
General Electrical Properties
Total conductivity 99.7% IACS
Total resistivity: 1.738 micro-ohm cm
Operating Temperature
-55 to 155 deg C due to oxygen-free copper
