Description

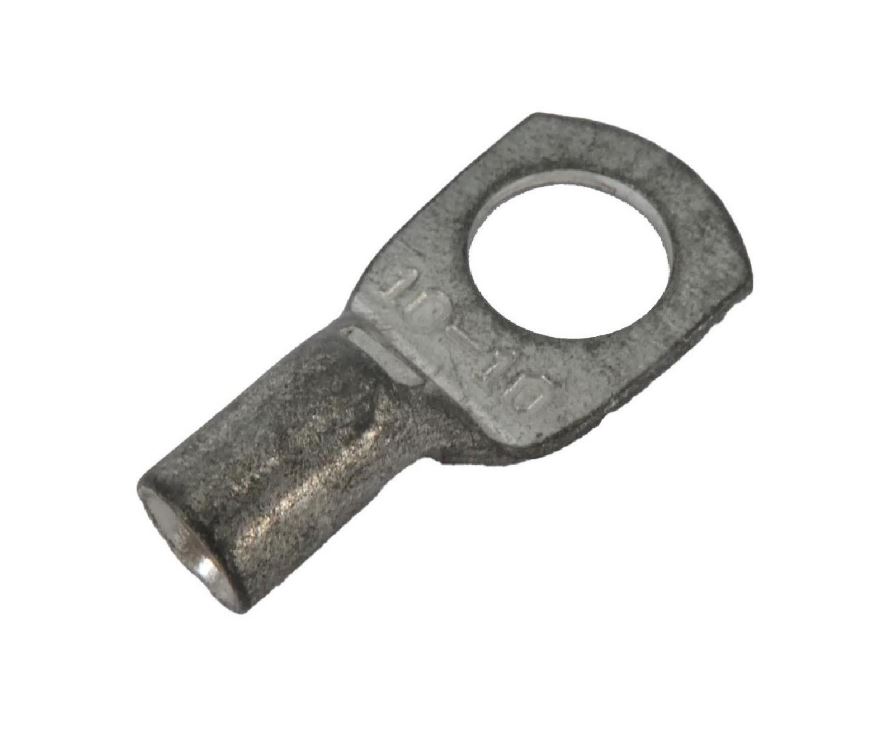

COPPER LUG 10MM X 10MM B/M 4 PACK
Nominal Conductor (mm2): 185
Stranding No./Dia.: 37/2.52
ID Size (mm): 18.4
Stud (mm): 10
Conductive Material
Copper 99.95% pure
Oxygen content 30 p.p.m Max.
Tensile strength 200 MPa
Ductile rating 40%
Final metal state fully annealed
Electroplating Material
Tin 99.9% pure
Other metals lead + antimony
Thickness 5 -10 microns
Dimensional Specification
Tooling is interchangeable between CABAC, Utilux and Burndy
General Electrical Properties
Total conductivity 99.7% IACS
Total resistivity: 1.738 micro-ohm cm
