Description

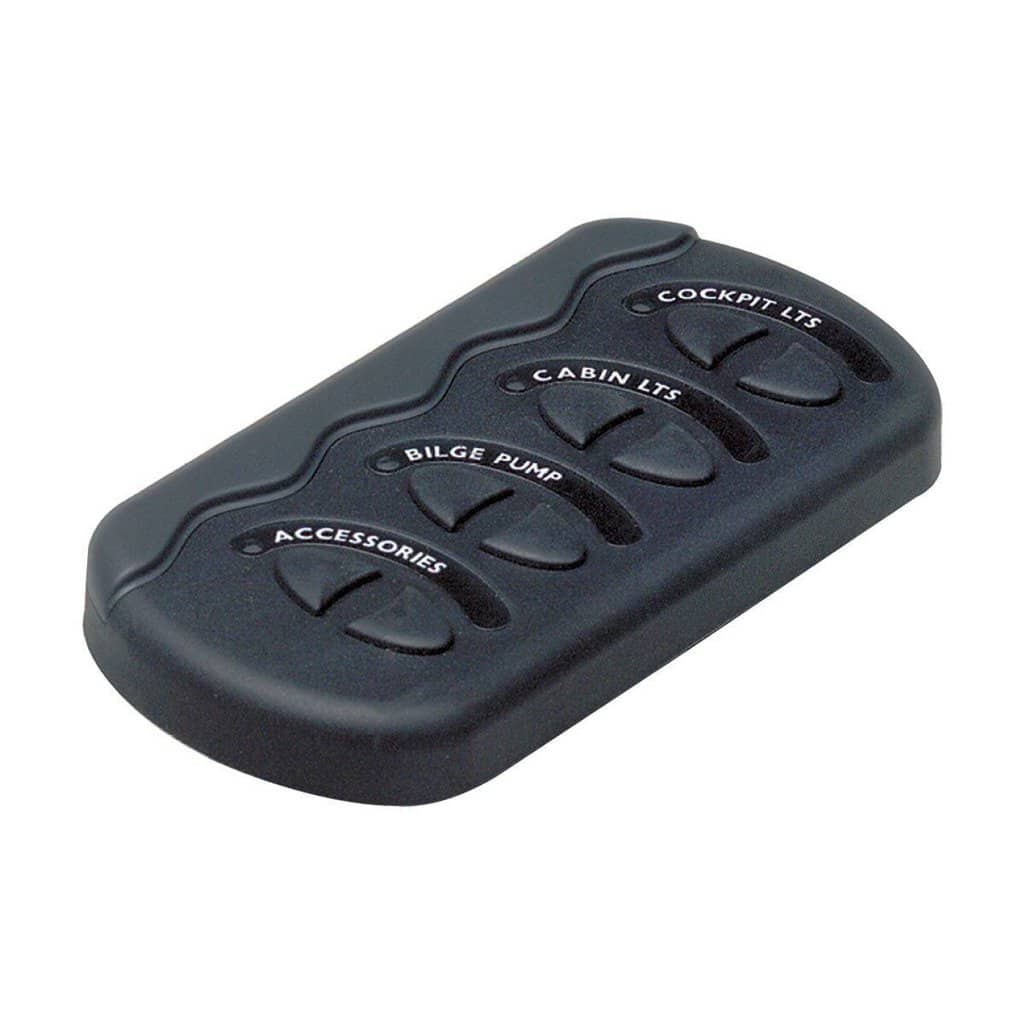

BEP Contour Gen 2 Splash Proof Switch Panel Black 4 Switch No Fuse
Featuring modern contour styling, this injection moulded plastic panel is designed for functionality and aesthetics.
Key Features:
Switch tray with a rubber mounting gasket and integral cover seal.
Clear plastic membrane cover with rubber over-mould for switch operation and label backlighting.
Red LED indicator for systems on status.
Interchangeable contour wave strips available in grey and blue; custom colours available (minimum quantities apply).
Mounting screws are hidden beneath the cover.
Panels can be mounted horizontally or vertically due to the unique label design.
Joiner available for multiple panel installations.

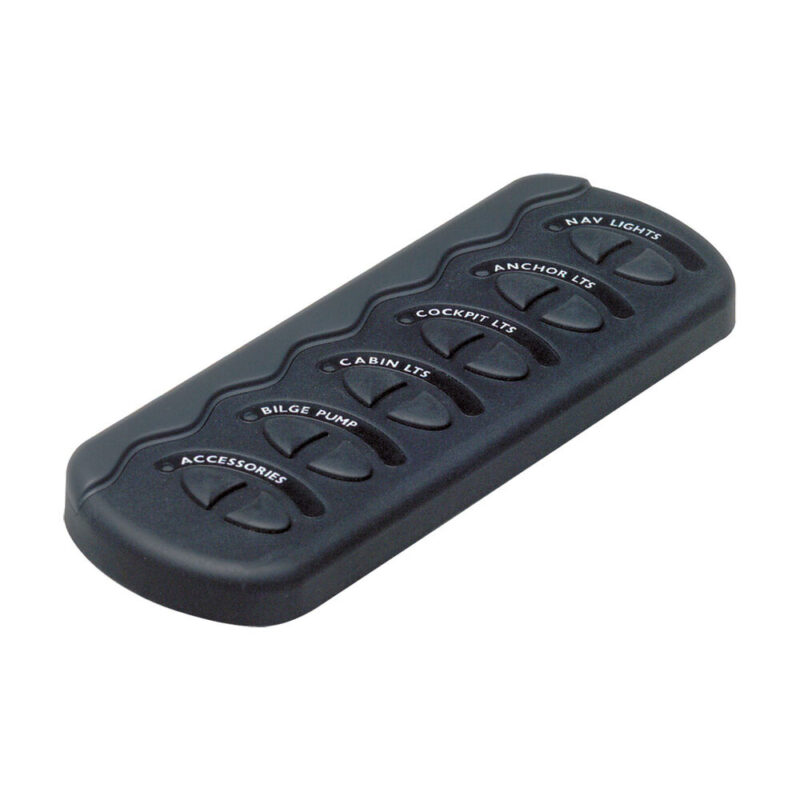

Available in 2, 4, or 6 gang versions with grey or white fascia and options for fuses.
Standard with two position, on/off switches and a 28-piece label set.
Replaceable clip-on contour wave strips.
Specifications:
Mounting screws covered by switch cover.
Backlit LEDs for visibility.
Flexible overshot cover allows easy switch operation.
Ribbed gasket provides a watertight seal with the switch cover.
Molded gasket on panel base creates a watertight seal against the mounting surface.
Unique design allows labels to be read whether mounted vertically or horizontally.
Switches rated at 16A DC.
Panel supplied standard with label SET-G2-1.
Three position switches and momentary switches available with label set 113695.
Suitable for 12 or 24 volt systems.
Overall width: 63mm; Cut out width: 42mm; Intrusion: 25mm; Mount screws: 3mm roundhead.
