Description
FEATURES
Combination pump and float switch.
The pump turns on as the water level rises and shuts off when water is removed.
Sealed, efficient, long-life motor.
Fully submersible.
Intermittent-duty.
Ignition protection.
Low amp motor.
Stainless steel motor shaft.
Snap-on stainer base for easy cleaning.
Anti-fouling impeller.
1 m tinned wire.
SPECIFICATIONS
Part No. 239940
Series 750
Volts 12V
Amps 2.5A
Max Current 5A
Head 0m 750GPH (2839LPH)
Max. Head 3m
Outlet Dia. 3/4 inch

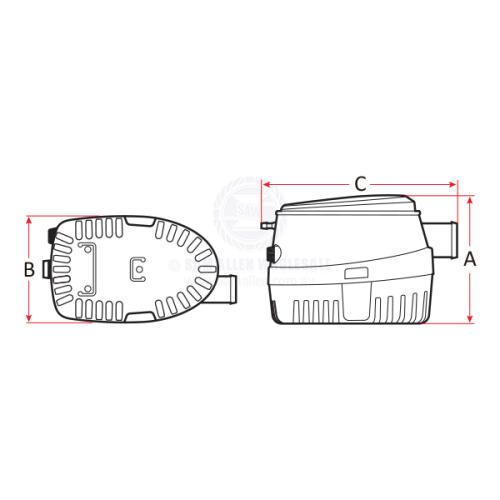

Dimensions (A x B x C) 104mm x 85mm x 153mm
Note Ensure wiring connections remain above water level on all submersible bilge pumps and float switches.
