Description
FEATURES
Combination pump and float switch.
The pump turns on as the water level rises and shuts off when water is removed.
Sealed, efficient, long-life motor.
Fully submersible.
Intermittent-duty.
Ignition protection.
Low amp motor.
Stainless steel motor shaft.
Snap-on stainer base for easy cleaning.
Anti-fouling impeller.
1 m tinned wire.
SPECIFICATIONS
Part No. 239942
Series 1200
Volts 12V
Amps 6A
Max Current 9A
Head 0m 1200GPH (4543LPH)
Max. Head 4.5m
Outlet Dia. 1-1/8 inch

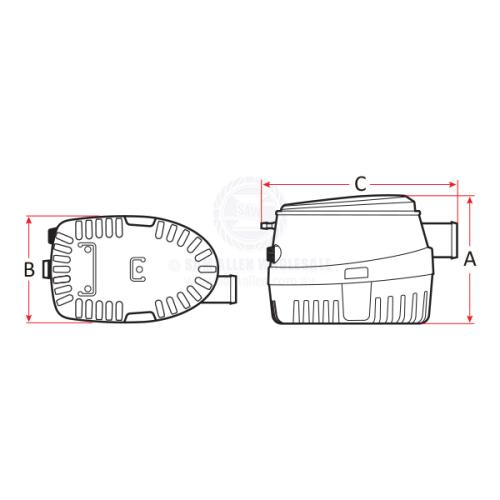

Dimensions (A x B x C) 104mm x 85mm x 158mm
Note Ensure wiring connections remain above water level on all submersible bilge pumps and float switches.
