Description
FEATURES
Compact, efficient, long-life motor.
Fully submersible.
Intermittent-duty.
Ignition protection.
Low amp motor.
Stainless steel motor shaft.
Snap-on stainer base for easy cleaning.
Anti-airlock protection.
1 m tinned wire.
Bilge pump and float switch are sold separately. A compatible float switch is required for automatic operation.
SPECIFICATIONS
Part No. 239932
Series 500
Volts 12V
Amps 1.6A
Max Current 2.5A
Head 0m 500GPH (1892LPH)
Max. Head 2.5m
Outlet Dia. 3/4 inch

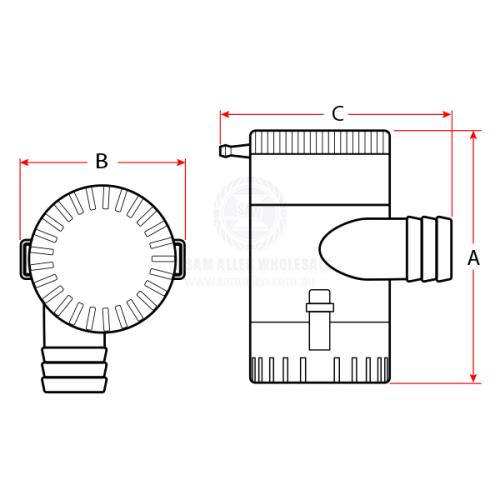

Dimensions (A x B x C) 108mm x 70mm x 91mm
Note Ensure wiring connections remain above water level on all submersible bilge pumps and float switches.
