RONSTAN 50QT ORBIT WINCH 2-SPEED QUICK TRIM

RONSTAN 50QT Orbit Winch, 2-Speed QuickTrim
Lightweight aluminium winch with QuickTrim self-tailer, 2 speeds, and Power Ribs for controlled grip on the line at all times.

FEATURES
Sprung self-tailing jaws to accept 8 - 14mm line.

QuickTrim patented self-tailing feature for rapid sail trim and smooth adjustment.

Ball bearings carry the thrust loads, roller bearings carry the radial loads of the drum to minimise rotational friction.
Proven gearing configuration.

Power Rib ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes.

45QT and 50QT available as three-speed models.

Machined aluminium drum stronger and lighter than traditional cast aluminium drums.

Lightweight aluminium centre stem provides significant weight savings over traditional bronze stems.

Low line entry due to gearing configuration geometry.

Specifications:

Weight (kg) 5.4
Performance Level Performance Racing, Offshore Racing/Bluewater Cruising, Club Racing/General Cruising
Gear ratio 1st speed 3.0 : 1
Gear ratio 2nd speed 10.8 : 1
Gear ratio 3rd speed -
Power ratio 1st speed 13.4 : 1
Power ratio 2nd speed 49.3 : 1
Power ratio 3rd speed -
Line Size (mm) 8-14
Max Pull (kg) 1350

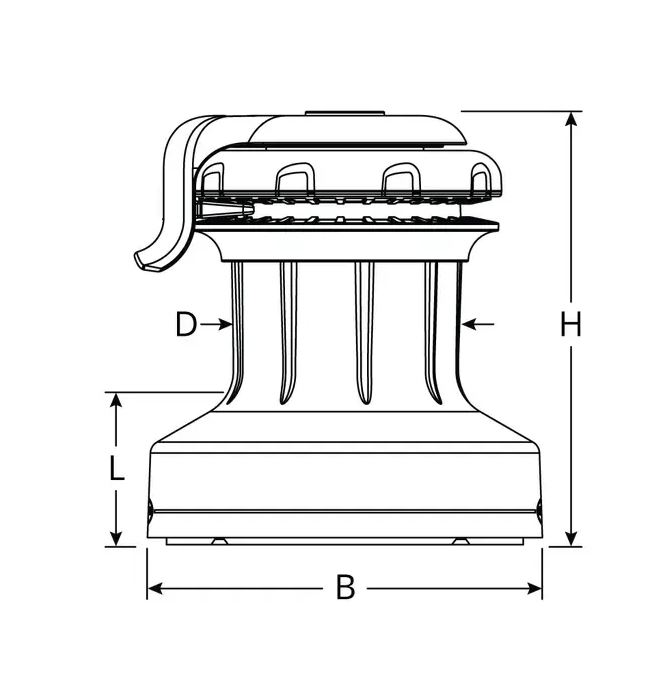

Specification Details:

Base "B" Ø (mm) 183
Drum "D" Ø (mm) 110
Height "H" (mm) 207
Line Entry "L" (mm) 80

Materials
Hard anodised aluminium drum and centre stem, aluminium self-tailing arm.

Grade 316 stainless steel shaft and pawls.

Grade 316 and 2205 stainless steel axle pins.

Aluminium bronze gears.

Glass-filled nylon self tailer.

Self-lubricating acetal ball and roller bearings.
