RONSTAN 40QT ORBIT WINCH 2-SPEED QUICK TRIM

The innovative QuickTrim self tailer allows sailors to easily and safely ease line tension to make minor sail trim adjustments without having to remove the winch handle or take the line out of the self-tailer. Racing sailors can react and respond instantly to minor changes in wind direction or steering, providing an unmatched advantage when frequent sail trim adjustments are required. It’s also a nice convenience for cruising sailors.

On the water, using QuickTrim is intuitive and quickly becomes second nature. With one hand on the tail of the sheet, rotating the top cover of the winch anti-clockwise against spring pressure allows the self tailer to turn beneath it like a sheave as the rope is eased out, with smooth grip and control assured by the drum surface and Power Ribs. When the top cover is allowed to spring back, the self-tailer locks again and grips the line to resume normal use. This simple, reliable feature is a real advantage when making frequent minor adjustments to sheet and halyard tension.

As delivered from the factory, the Orbit 40QT operates as a traditional two-speed self-tailing winch. The QuickTrim feature is enabled by the user, simply by removing a single screw located within the self tailer.

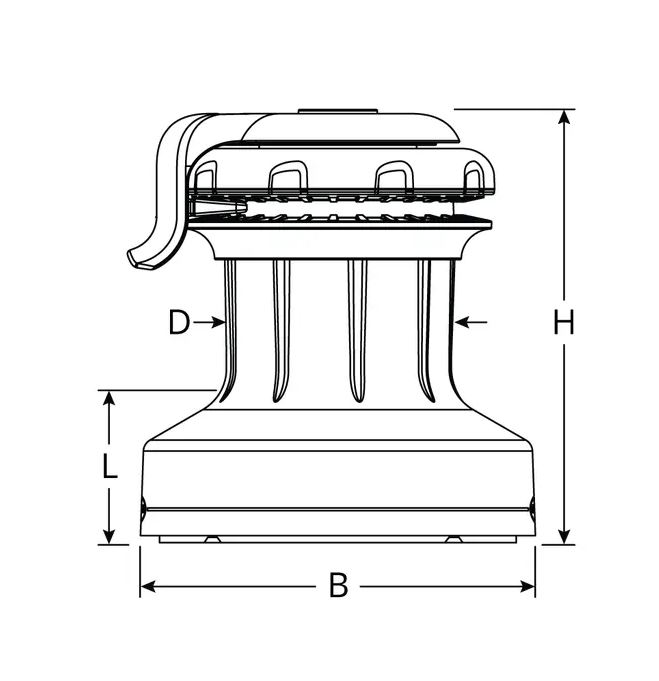

Dimensions:

Height - 166mm
Overall Diameter - 151mm
Drum Diameter - 86mm
Line Entry - 57mm
Line Size - 7 - 12mm
Weight - 3.1kg

Technical Specs:

Gear Ratio, First Speed - 1.4 : 1
Gear Ratio, Second Speed - 6.8 : 1
Power Ratio, First Speed - 8.3 : 1
Power Ratio, Second Speed - 40.1 : 1
Max Pull - 1350kg

Materials:

Hard anodised aluminium drum and centre stem, aluminium self-tailing arm
Grade 316 stainless steel shaft and pawls
Aluminium bronze gears
Glass-filled nylon self tailer
Self-lubricating acetal ball and roller bearings
