RONSTAN 40QT ORBIT WINCH 2-SPEED QUICK TRIM E1 12V

40QT Orbit Winch 2-Speed, QuickTrim E1 12V

Lightweight electric aluminium winch with QuickTrim self-tailer and a high quality European engineered & manufactured E1 motor.

Specifications

Max. Rope diameter (mm) 10
Weight (kg) 15.3
Performance Level Performance Racing, Offshore Racing/Bluewater Cruising, Club Racing/General Cruising
Line Size (mm) 7 - 12

Perfect for enjoying sailing short-handed or with friends and family, E1 Electric Orbit Winches are engineered with unsurpassed levels of functionality, monitoring, and protections. Installation is simple with no external control box required, while the illuminated intelligent push button aids in monitoring of safety features that include overload protection, thermal overload protection, accidental start protection, reverse polarity protection, and more. At the heart of the system is a high quality, European engineered and manufactured series-wound motor, matched with the optimum gearbox for efficient pulling power and line speed.

E1 electric single speed motor with illuminated intelligent push button to aid in monitoring of safety features that include overload protection, thermal overload protection, accidental start protection, reverse polarity protection, and more.

QuickTrim patented self-tailing feature for rapid sail trim and smooth adjustment

Power Rib drum ensures a controlled grip at all times, whether trimming or easing.

Fully machined aluminium drum, stronger and lighter than traditional cast aluminium drums

Self-tailer accepts line diameters 7-12mm

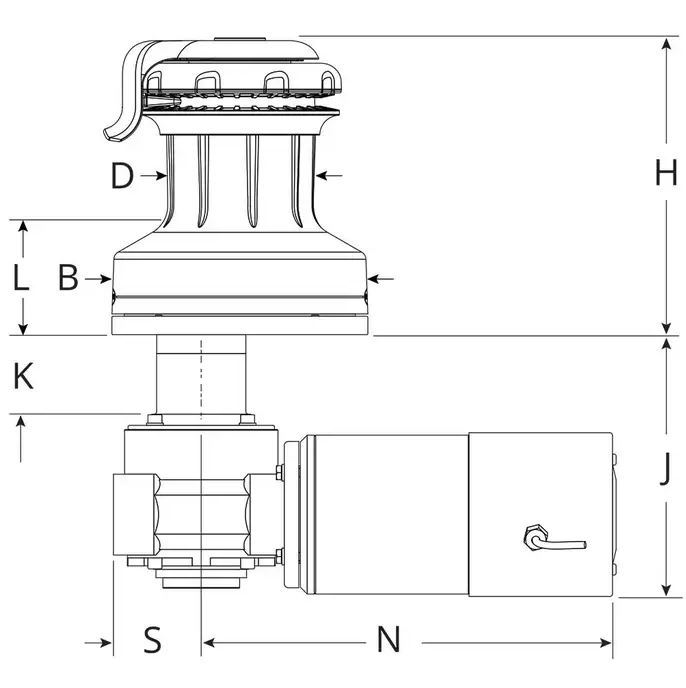

Technical Information

Base "B" Ø (mm) 153
Drum "D" Ø (mm) 86
Height "H" (mm) 182
J Motor Depth (mm) 182
K Max Deck (mm) 48
Line Entry "L" (mm) 74
N Motor Length (mm) 303
S Gear Length (mm) 63
