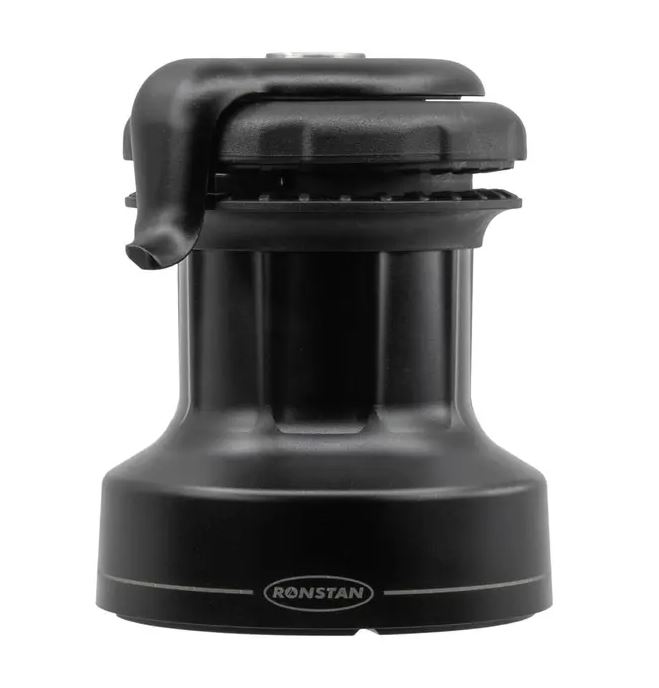

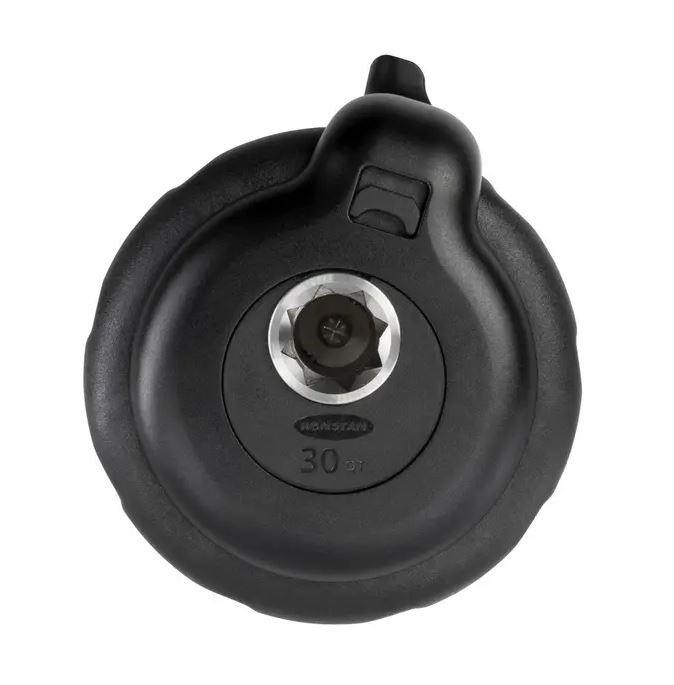

RONSTAN 30QT ORBIT WINCH 2-SPEED QUICK TRIM

30QT Orbit Winch with QuickTrim

Ronstan Orbit Winches are the new benchmark in high performance alloy winches. With a combination of fresh design thinking and proven manufacturing expertise, Orbit Winches weigh significantly less and offer lower line entry heights than any other winch in their class. Remarkably easy to service, they require no tools for disassembly or maintenance. The fully machined aluminium drums feature the same Power Ribs that many will recognize from Andersen Stainless Steel Winches®, well-known for their impressive line grip, smooth control, and minimal rope wear.

Orbit Winches sizes 30QT and larger are equipped with the unique, patented QuickTrim self-tailer. This truly functional innovation allows sailors to easily and safely ease line tension to make minor sail trim adjustments without removing the winch handle or taking the line out of the self-tailer.

QuickTrim patented self-tailing feature for rapid sail trim and smooth adjustment.

Power Rib drum ensures a controlled grip at all times, whether trimming or easing.

Fully machined aluminium drum, stronger and lighter than traditional cast aluminium drums

No tools required for disassembly and servicing

Self-tailer accepts line diameters 7-12mm

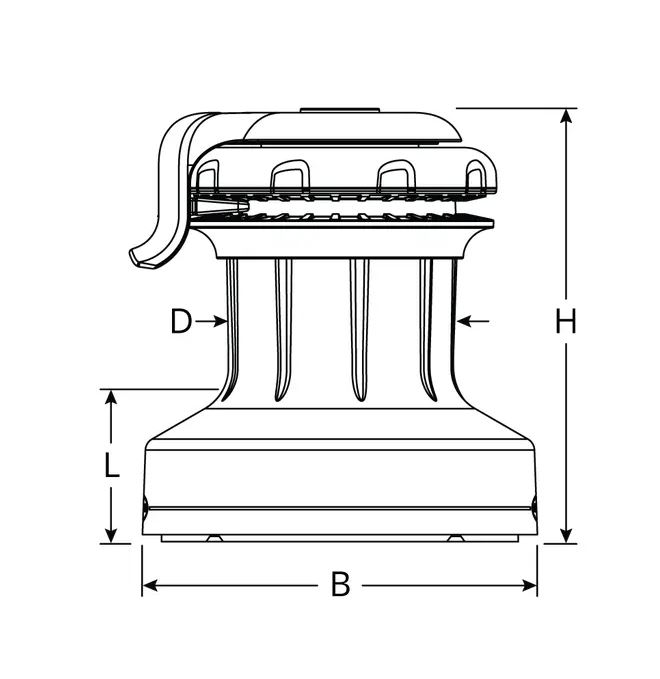

Specification Details
Base "B" Ø (mm) 136
Drum "D" Ø (mm) 86
Height "H" (mm) 166
Line Entry "L" (mm) 57

Product Specifications
Max. Rope diameter (mm) 12
Weight (kg) 3.1
Performance Level Performance Racing, Offshore Racing/Bluewater Cruising, Club Racing/General Cruising
Gear ratio 1st speed 1.4:1
Gear ratio 2nd speed 5.2:1
Power ratio 1st speed 8.3:1
Power ratio 2nd speed 30.2:1
