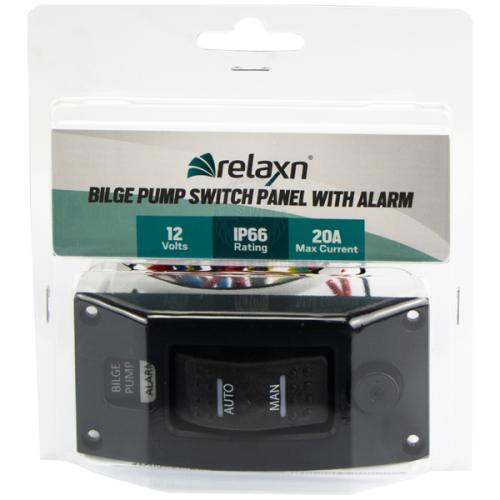

SWITCH PANEL BILGE+ALARM 12V ON-OFF-(ON) ROCKER 12V

FEATURES

Modern design with visual and audible alarm.
Requires second float switch for high water alarm. (not included)
Pump activates automatically in auto mode when water reaches the lower float switch.
Alarm triggers when water reaches the upper float switch.
Pump activates if the lower float switch fails and water reaches the upper float switch.
Backlit label for easy recognition.
Three-position switch: Auto/Off/Manual.
Manual mode is momentary to prevent accidental prolonged operation.
Includes a 20-amp integral blade fuse.

SPECIFICATIONS

Part No. 530771
Switch Function On/Off/(On)
Volts 12V
Max Current 20 Amps
Material Plastic (ASA)
Panel Cut Out (W x H) 36mm x 100mm
Face Dimensions (W x H) 54mm x 114mm
Mounting Depth 75mm
Waterproof Siren 85dB
