KUUMA 75L 20 GAL HORIZONTAL- 240VAC

$1,436.40 Inc GST

In Stock

SKU: 420102 Category:

Description

Kuuma (previously Force 10) Marine Hot Water Heater

Includes Sacrificial Anode and Drain

75L 240 Volt / Heat Exchange – Horizontal Front/Back Mounting Tabs (420102+Anode)

Marine/RV Storage Water Heater – 75 litre (20 Gallon) with Front/Back mounting Tabs.

All Kuuma-Force 10 Marine Water Heaters come standard with 240 Volt Electric elements and high performance Heat Exchange capabilities. Tested and certified to the latest Australian standards AS/NZS 60335.2.21-2002 – ESO Approval No. Q080349 UL & CE certified including the marine supplement and are ignition protected.

A direct replacement for most Seaward & Atwood Marine Water heaters the Australian versions of Kuuma/Force 10’s have improved pressure and temperature relief valves and improved elements with polymer end caps.

These marine hot water systems are designed for use in boats, and are also installed in many motor homes, RV’s and transport trucks.They heat water by circulating engine cooling water through a heat exchange. The two systems can be used independently or together to heat water.

1500 Watt AC element (240 Volt standard)
240 Volts (also available in 110v on request)
Large Heat Exchange
TIG welded aluminum tank and casing
Tank Material: Aluminum
Exterior Jacket: Aluminum
Side mounting Tabs
Not recommended for use with raw/salt water in the engine heat exchange circuit as this will shorten the life of your water heater.
Warranty Period: 12 Months
Model: 420102

Capacity: 75 litres (20 Gallons)
Case Material: Aluminium
Voltage: 240 Volt AC 1500 Watts
Heat Exchanger Position: Front
Mount Postion: Bottom Front/Back

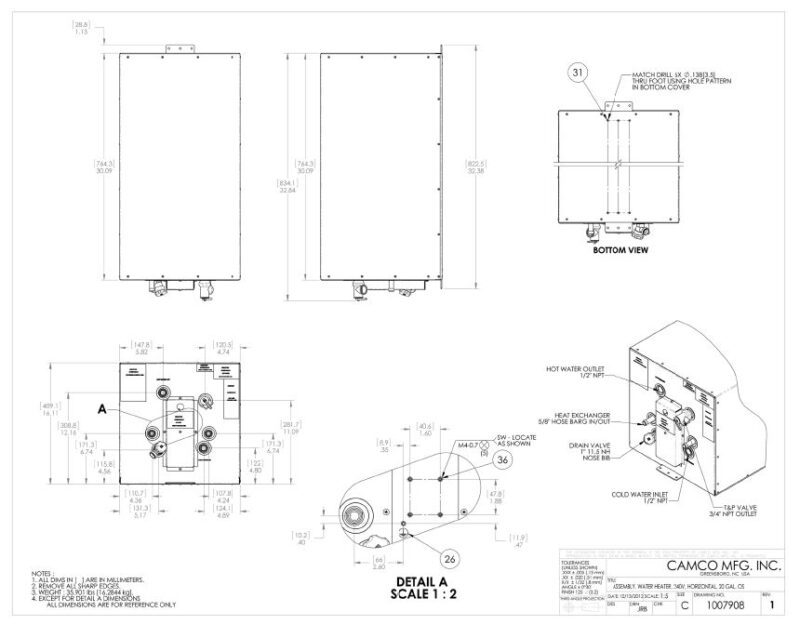

FOR DETAILED DIMENSIONS REFER TO THE DIMENSIONAL DRAWING

Length: 764 mm (case dimension only, does not include mounting tabs or plumbing fittings) Mounting tabs + 29mm, Plumbing fittings + 69.8
Width: 409 mm (case dimension only, does not include mounting tabs or plumbing fittings)
Height: 409 mm
Dry Weight: 22 kg

You must inspect your Kuuma HWS anode every 3 months & replace when it is 50% eroded. Failure to do this will cause premature failure of the system which is not covered under warranty.

Images are stock images always check product descriptions

Shipping weight 25 kg
Shipping Dimensions 990 × 500 × 500 mm
