EXPLODING FISH ROD HOLDER STREAMLINE ROTATING 15 DEG 316 SS

EXPLODING FISH ROD HOLDER STREAMLINE ROTATING 15 DEG 316 SS

Features:
360 degree rotation with locking position in 5 degrees increments.
Cast 316G stainless steel gear head TIG welded to the rod sleeve.
Cast 316G stainless steel base plate.
Injection moulded polyethylene top and bottom bearing.
Cast 316G stainless steel top cover.
Rubber mounting gasket.
TIG welded 6mm stainless steel gimbal pin.
316G stainless steel locking lever.
Rubber locking lever cover.
316G stainless steel pivot pin.

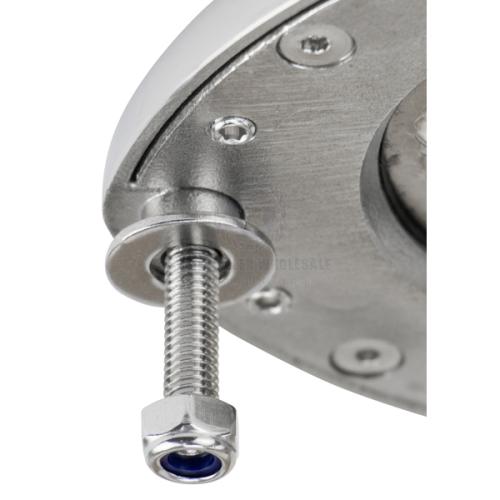

316G stainless steel mounting hardware included.

Type S/S
Shaft Angle 15 degrees
Flange (W x L) 116mm x 143mm
Overall Depth 212mm
Shaft Depth 197mm
Shaft O.D. 51mm
Shaft I.D. 40mm
Sleeve Swing Dia. 157mm
Mount Type M6 c/s
