DOLPHIN III BATTERY CHARGER 24V 20A3 OUTPUT

DOLPHIN III BATTERY CHARGER 24V 20A3 OUTPUT

New robust and compact casing
3 completely isolated battery outputs
Easy wiring and connection thanks to the Winsta (Wago) and Phoenix contact connectors
Digital management with up to date micro-controller
4 charging programs including one for lithium-ion-iron-phosphate with integrated BMS
Full power at temperatures up to 50°C
Automatic weekly equalisation for all charging programs
Automatic 115/230v switch over (12v 25A, 12v 40A & 24v 20A only)
Night mode: silent without fan (12v 25A, 12v 40A & 24v 20A only)
Conformal coating of the PCB to prolong the life of the battery charger
New Dolphin Premium 12v 60A includs CAN BUS J1939 feature

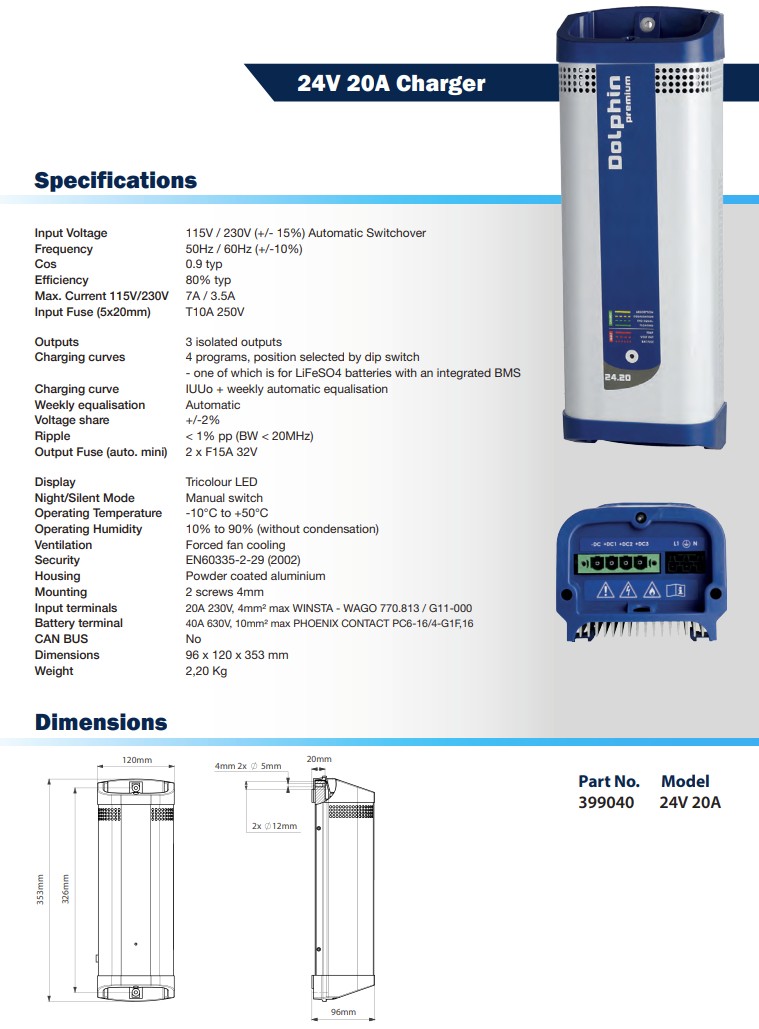

SPECIFICATIONS:

Input
Input Voltage 115V / 230V (+/- 15%) Automatic Switchover
Frequency 50Hz / 60Hz (+/-10%)
Cos 0,9 typ
Efficiency 80% typ
Max. Current 115V/230V 7A / 3,5A
Fuse (5x20mm) T10A 250V
Output
Number of outputs 3 isolated outputs
Number of charging curves 4 programs, position selected by dip switch NEW - one of which is LiFeSO4 with integrated BMS
Charging curve IUUo + weekly automatic equalisation
Weekly equalisation Automatic
Voltage share +/-2%
Ripple < 1% pp (BW < 20MHz) Fuse (automatic mini) 2 x F15A 32V Physical Display Tricolour LED Night/Silent Mode Manual switch Operating Temp -10°C to +50°C Humidity 10% to 90% (without condensation) Ventilation Forced fan cooling Security EN60335-2-29 (2002) Housing Powder coated aluminium Mounting 2 screws 4mm Dimensions 96 x 120 x 353 mm Weight 2,20 Kg Input terminals 20A 230V, 4mm² max WINSTA - WAGO 770.813 / G11-000 Battery terminal 40A 630V, 10mm² max PHOENIX CONTACT PC6-16/4-G1F,16 CAN BUS No Protection 1 Output overload 2 Excessive internal temperature 3 Charging voltage too high 4 Reverse battery polarity (fuse)
