BATTERY SWITCH H/D 4 POS SURFACE MOUNT

RELAXN BATTERY SELECTOR SWITCH H/D 4 POSITION SURFACE MOUNT

FEATURES

4 positions - Battery 1 and 2
Battery 1
Battery 2
Off
Features brass terminals and heavy-duty plastic construction.
Ideal for marine and automotive applications.
Allows the use of 2 batteries with a single pole,
triple-throw rotary switch.
Click stop to all positions.
Locking button stops knob from turning.
Vapour proof and ignition protected.
14mm M10 stud size.
Load rating @12V:
175A @ 12V maximum continuous.
300A @ 12V intermittent (5 min).
CE certified.

SPECIFICATIONS

Part No. 23122
Functions 4
Mount Style Surface
Max. Volts 32V
Maximum Continuous Load 175 Amp @ 12V

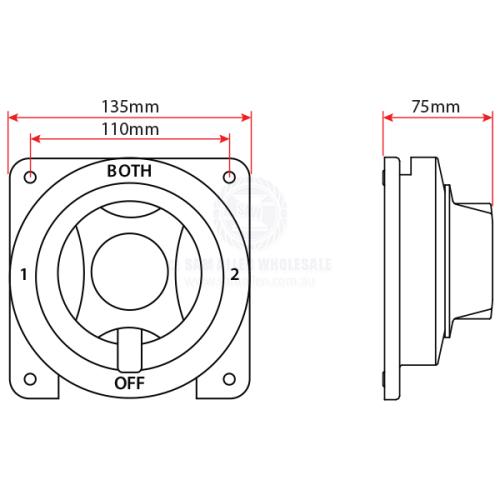

Dimensions (L x W x D) 135mm x 135mm x 75mm

Note Do not the turn switch off while the engine is running.
