SEAVIEW CABLE GLAND WHITE >27.5MM

FEATURES

Deck Seals) provide waterproof cable routing. These are made of very strong plastic or marine grade 316 stainless steel and come in a variety of colors and finishes. Seaview cable seals fit a wide range of cables and connectors. Seaview Cable Seal options for 17mm to 34mm (0.67 inch to 1.38 inch) connectors, making it ideal for almost every installation. All Seaview Cable Seals (including the round Cable Seals) will work with more than one cable as long as each cable has its own hole and there is at least .125 inch of rubber around each hole.

IPX6 & IPX7 Tested & Approved.
Made of very strong UV resistant plastic or marine grade 316 stainless steel that come in a variety of colors and finishes.
All Seaview cable seals will work with more than one cable.
* Max cable diameter.

SPECIFICATIONS

Part No. 970752
Colour / Material White Plastic
Cable Diameter Up to 27.5mm

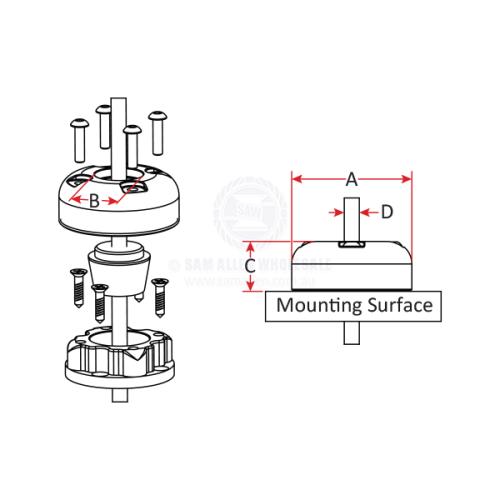

A 2.53 inch / 64mm
B 1.38 inch / 35mm
C 0.813 inch / 20mm
D* 1.08 inch / 27mm
Note You can use multiple cables for any Seaview cable gland as long as each cable has its own hole and 0.125 inch (3.18mm) of rubber around each hole.
