Description
Benefits of AIS (Automatic Identification System)
An AIS transponder on your boat automatically receives information broadcast by other AIS-equipped vessels and base stations, all while your own vessels static and dynamic information is being transmitted. Using with an AIS transponder, you can find AIS mounted small boats and buoys that are difficult to be detected with a marine radar. The MA-510TR can receive both Class A and B AIS signals and increases your safety at sea.
4.3-inch Color TFT LCD
Plotter screen (Day mode)
The wide viewing, high resolution 4.3-inch color TFT display clearly shows your and other vessels positions. Potentially dangerous vessels are shown in red and ships registered as your friends are shown in yellow. The day-mode display is readable in direct sunlight, and the night-mode display ensures good readability in the dark for further convenience.
AIS Target List and Details
Target list screen
The Target list screen shows all detected AIS equipped vessels and targets. The Danger list screen shows a list of vessels that are within six nautical miles of Closest Point of Approach (CPA) and sixty minutes of Time to Closest Point of Approach (TCPA) from your vessel. The Friend list screen displays the detected AIS targets that you set as friends. When you want to see target details, select the target by the cursor keys and push [ENT] key.
Detail screen examples
Simplified Navigation Function
Plotter screen with Navigation screen
The Navigation function guides you to a specified waypoint or AIS target. You can assign a maximum of 100 favorite fishing spots or destinations as waypoints. The Navigation function is simply started by just selecting a waypoint or an AIS target on the display.
Navigation screen
Navigation to MOB Waypoint
Plotter screen with MOB Navigation screen
When the [WPT/MOB] button is held down, the MA-510TR automatically marks a waypoint of the vessels current position and activates the MOB (Man Overboard) navigation function to the location the MOB event occurred.
MOB Navigation screen
Individual DSC Call
You can transmit an individual DSC Call by simply selecting an AIS target and the voice channel on the MA-510TR*.
* A compatible Icom VHF radio is required. The MA-510TR and a radio can be connected with the accessory cable. See the instruction manual of each for radios connecting instructions.
USB Connectivity
AIS data can be output from an USB cable connector on the rear panel*.
* A third party application and a connection cable are required.

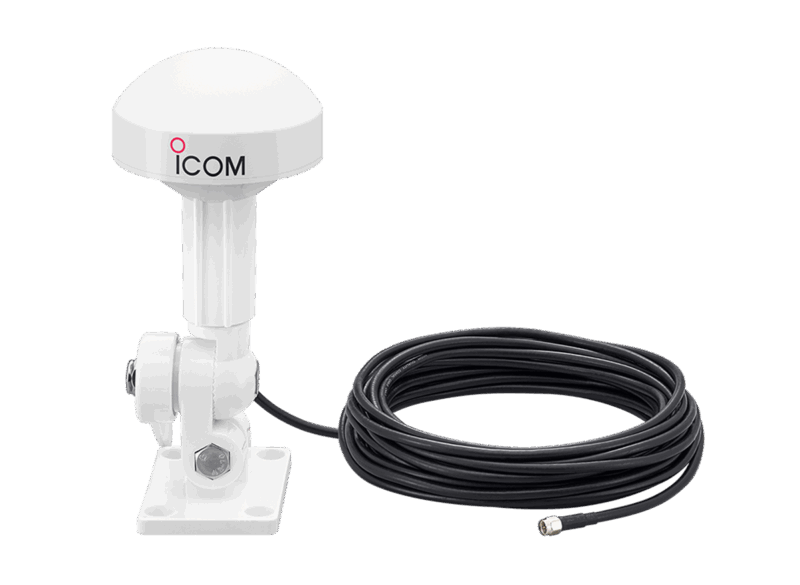

Supplied GPS antenna
The GPS receiver with SBAS function is integrated in the MA-510TR. Position information can be simply received with connection to the supplied GPS antenna with 10 m, 32.8 ft cable.
