Description

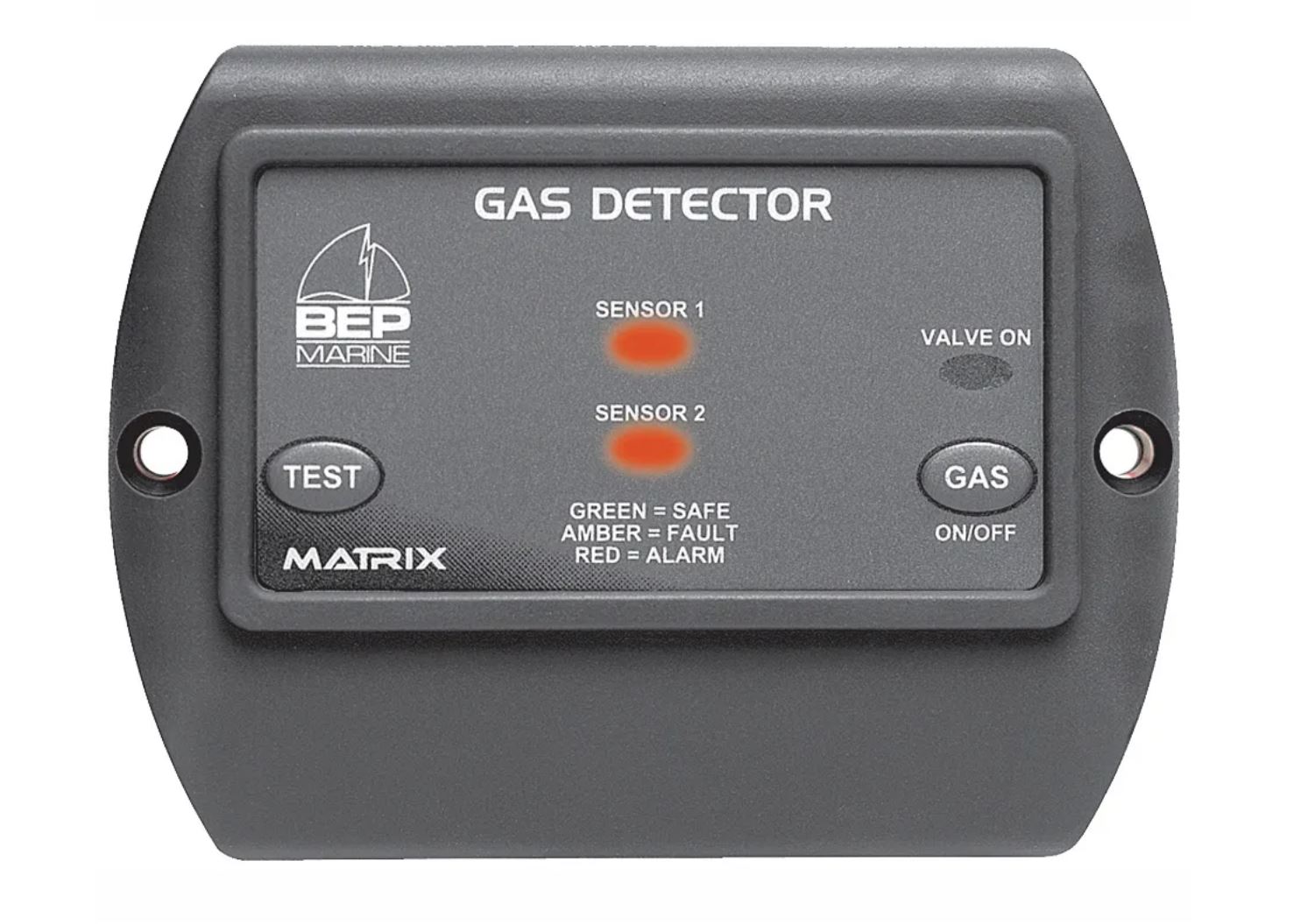

BEP GAS DETECTOR WITH ONE SENSOR WITH SHUT OFF
The BEP Detectors use microprocessor control to ensure correct sensor sensitivity. The Detectors have the capability to control two sensors which detect both LPG and Petrol, with visual and audible alarms.
There is a test switch to check operation of sensors with indicators for fault detection. 600-GDL Gas Detector has the same features as the 600-GD, with the additional ability to switch a valve on and off.
The 600-GDL has a “pulse and hold” feature which allows the solinoid valve to to be opened, using full power, and then reducing power to hold the valve in the open position.
This reduces power consumption and heat generated whilst the valve is in the on position.
Features
Self testing capability
Microprocessor control
Provision for external alarm
Automatic shut-off solenoid control with pulse and hold circuit for low power draw (600-GDL only)
Provision for bilge blower
Dual sensor capability
Specifications
Voltage: 600GDL 10-15V DC
Current: Total 350mA Max
Alarm: 20% LEL (Lower Explosive Limit)
Current at outputs: 800mA Max (per output)
